The Zebra TC501 is an enterprise touch computer built for Australian commercial supply chains, transport operators, distribution centres, and mobile field services. It replaces fragile consumer smartphones and dated legacy terminals with a dedicated handheld tool designed for continuous barcode scanning, asset tracking, digital dispatch, and electronic proof of delivery (ePOD).
By standardising on the TC501, enterprise operations gain faster stock turnarounds, accurate chain-of-custody tracking, and predictable multi-year hardware support lifecycles. Staged, configured, and deployed directly from our facility, we supply and support these rugged mobile computer for commercial fleets operating nationwide.
Get all the details on the Zebra TC501 with our full specifications and data sheet.
Download Datasheet (PDF)
Performance and Processing Power
The TC501 runs on Qualcomm's Dragonwing™ Q-6690 processor with speeds up to 2.9 GHz, featuring a dedicated on-device AI processing engine that delivers a 300% performance increase over previous TC5 generations while lowering active power draw. Enterprise memory options include 8GB LPDDR5 RAM with 128GB UFS 3.1 flash storage, or 12GB LPDDR5 RAM with 256GB UFS 3.1 flash storage, alongside an external microSD slot supporting up to 2TB for offline databases and route manifests. Operating on Android with Zebra LifeGuard™ support, the hardware includes Android Strongbox with a Secure Element IC (FIPS 140-3 Validated and Common Criteria ISO 15408 certified) to safeguard business data and manage device lifecycles through standard EMM platforms.
Display and Input Design

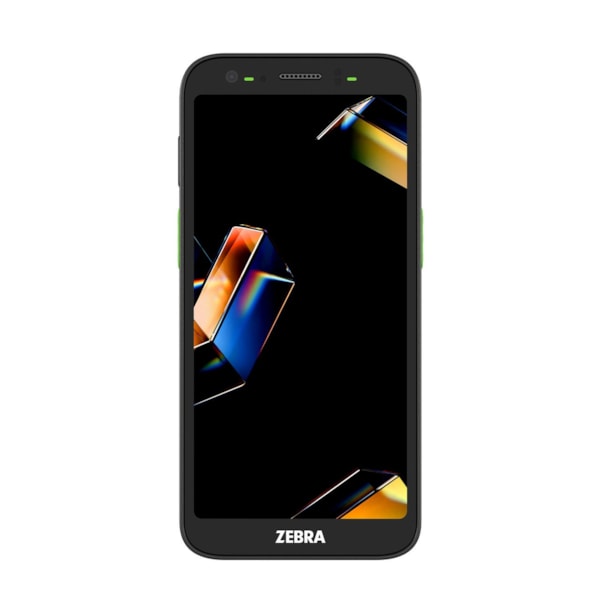

Workflows are displayed on a 6.0-inch Full High Definition+ (2160 x 1080) AMOLED panel offering 20% more viewable area than earlier TC5 models. Calibrated for outdoor visibility, the screen outputs 600 nits typical brightness, 1,000 nits in High Brightness Mode, and up to 1,500 nits peak brightness. The display is optically bonded and shielded with Corning® Gorilla® Glass Victus®. The capacitive touch panel supports bare-finger operation, heavy work gloves, a passive stylus, and water droplet rejection to maintain touch accuracy in wet weather.
Connectivity and Expansion
Network options cover 5G Release 17 Sub-6 GHz (SA and NSA) and 4G LTE, including Band 28 (700 MHz) for long-range regional transport coverage across Australia, alongside private 5G and CBRS networks (Dual SIM: 1x Nano-SIM + Dual eSIM). On-site wireless networking uses tri-band Wi-Fi 7 (802.11be/ax/ac/n/a/g/b) with Multi-Link Operation (MLO) and 802.11r fast roaming for uninterrupted coverage across large warehousing yards. Local pairing is supported by Bluetooth 6.0 Class 1 and 2, while fleet dispatch is guided by triple-band concurrent GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS). Data capture choices include an integrated short-range UHF RFID reader (>200 tags/sec up to 2.0 m), enterprise 1D/2D scan engines (SR500 standard, SR560 high performance, or AC670 extended range up to 30 m), an optional 3D Time-of-Flight sensor, a 50 MP autofocus rear camera, an optional 13 MP ultra-wide rear camera, an 8 MP front camera, and multi-protocol NFC. Physical connections include a USB 3.1 Type-C bottom port and a rear USB 2.0 interface.
Battery Life and Charging
This rugged device uses Zebra's PowerPrecision+ Lithium-ion battery system, providing real-time data on cycle count, battery age, and remaining charge to prevent unexpected shift stoppages. Options include a standard 5,000 mAh (19.45 Wh) battery, an extended 7,240 mAh (28.16 Wh) battery for long shifts, or an inductive 5,000 mAh (19.45 Wh) wireless charging battery. True Hot-Swap capability allows field workers to swap batteries mid-shift without closing applications or dropping network links. Fast-charging options bring a depleted standard battery from 0% to 70% in approximately 45 minutes via desktop cradles, multi-bay depot ShareCradles, or vehicle active docks.
Usability
Weighing 273 g with the standard 5,000 mAh battery (303 g with the extended 7,240 mAh battery) and measuring 163.15 x 77.9 x 15.5 mm (6.42 x 3.07 x 0.61 inches), the Zebra TC501 is balanced for one-handed daily use and high-volume barcode capture. It is purpose-built for the following enterprise workflows:
-
Freight & Courier Logistics: Capture electronic proof of delivery (ePOD), customer signatures, and automated parcel dimensioning inside vehicles and cross-dock facilities.
-
Warehouse & Distribution Operations: Complete inventory cycle counts, shelf picking, and pallet identification using integrated RFID tracking and long-range barcode scanning.
-
Storefront Replenishment: Process price lookups, stock adjustments, assisted sales, and click-and-collect fulfillment at retail store level.
-
Field Service & Maintenance: Access job schedules, review service histories, and photograph component conditions with the 50 MP camera.
-
Hands-Free Warehouse Picking: Convert into a wearable picking terminal using the double-BOA wrist mount harness or the snap-on electronic trigger handle.
Rugged Durability
The TC501 meets MIL-STD-810H environmental standards and holds dual IP65 and IP68 sealing certifications per IEC 60529, sealing internal components against fine dust and continuous water immersion. The bare unit withstands repeated 1.83-metre (6-foot) drops to concrete across operating temperatures from -20°C to +50°C, and 2.44-metre (8-foot) drops at room temperature. With the snap-on rugged boot installed, drop resistance reaches 2.13 metres (7 feet) across temperature extremes and up to 2.74 metres (9 feet) to concrete. Tumble endurance is rated for 2,000 consecutive 0.5-metre (1.6-foot) tumbles without a boot, and 2,000 consecutive 1.0-metre (3.3-foot) tumbles with the rugged boot. Environmental tolerances include thermal shock transitions, storage temperatures from -40°C to +70°C, relative humidity from 5% to 95% non-condensing, and electrostatic discharge protection rated at ±15 kV air, ±8 kV direct, and ±8 kV indirect contact. The AMOLED screen and scan exit window are protected by Corning® Gorilla® Glass Victus® to prevent surface abrasion from mineral dust and handling impacts.
Product Gallery
Support & Availability
For all products supplied by Roaming Technologies our extended warranty support comes at no charge for the lifetime of the device. This means we'll be your single point of contact to assist in any warranty or repair issues, ensuring your device gets back into the field as quickly as possible.
Shipping costs and delivery lead times will vary depending on the product options and order quantities required. With the use of Australia-wide distribution centres, drop shipments direct from vendors and overnight shipping, we offer industry leading product availability.
If you have any questions about the Zebra TC501, feel free to call us at 1300 131 933 and speak with one of our specialists, or contact us online for assistance.
