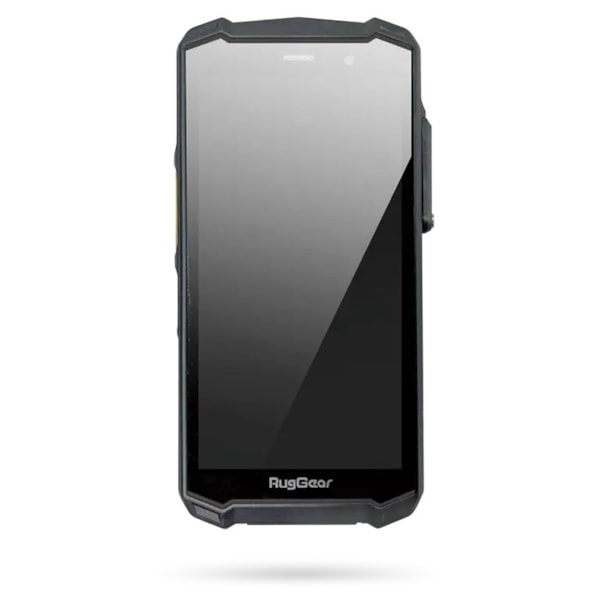

RugGear RG540 Rugged Smartphone | 5G

The RG540 is built inside a reinforced, shock-absorbing chassis with an IP68 rating, giving complete protection against fine airborne dust and continuous water immersion. The terminal meets MIL-STD-810H environmental standards for mechanical shock, drop resistance and industrial vibration. The 6.0-inch display is shielded by 3rd generation Corning® Gorilla® Glass to resist surface scratching from abrasive mineral dust and impact fractures. Internal environmental sensors include proximity, ambient light, accelerometer, gyroscope, e-compass and a barometric pressure sensor to support automated lone worker protection (LWP) and distress escalation.

The RG540 is built on Qualcomm's octa-core QCM6490 processor operating at up to 2.7 GHz, delivering the performance needed for high-bandwidth 5G edge computing, concurrent dispatch applications and low-latency encrypted voice encoding. The terminal has 8GB of system RAM and 128GB of internal storage, expandable up to 512GB through a secured microSD slot for caching local GIS maps, asset databases and incident footage. Running Android 12 with Google Mobile Services (GMS), the platform supports security patch updates and major operating system upgrades, so enterprise IT departments can deploy standard Enterprise Mobility Management (EMM) profiles with full policy control.

Operational data, schematics and video streams are shown on a 6.0-inch Full HD (1080 x 2160 pixels) display shielded by 3rd generation Corning® Gorilla® Glass. The capacitive touch screen is calibrated for industrial field conditions and keeps its touch accuracy when used with wet hands or heavy work gloves. The physical controls suit high-tempo work and include a top-mounted red SOS emergency button, a dedicated lateral Push-to-Talk (PTT) switch, physical volume buttons, a dedicated camera shutter key and programmable function buttons that can be assigned to custom enterprise applications.

Consignment conditions, assets and incidents are documented with the 48 MP PDAF rear camera.

Dispatch calls stay audible in loud processing plants, rail yards and transport depots. The RG540 uses dual-microphone noise reduction to filter background machinery hum and wind, and an amplified 2-watt forward-facing loudspeaker delivers volume above 103 dB, so incoming audio stays clear and intelligible in an emergency. A secure 16-pin lateral interface connects heavy-duty audio accessories.

Shift endurance is supported by a removable 4,400 mAh Lithium-ion battery pack engineered to sustain intensive 5G data throughput, continuous display illumination and active Push-to-Talk communications across full 12-hour rosters. The removable design lets 24/7 operations swap in a freshly charged pack at shift change without taking the device out of service. Charging is supported through the USB 3.1 Type-C interface, single-bay desktop cradles, or multi-slot gang chargers that use the dedicated rear charging contacts.

Engineered for nationwide commercial networks and private industrial infrastructure, the cellular modem supports 5G NR bands n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78 and n79 across both Standalone (SA) and Non-Standalone (NSA) architectures, with Carrier Aggregation (CA) and ENDC. Regional Australian transport corridors are covered by 4G LTE Band 28 (700 MHz), alongside the private cellular bands Band 48 / n48 (CBRS) and Band 68 (PPDR). The device is certified for PTCRB and GCF compliance and supports 3GPP Release 15 MCX standards, eMBMS broadcast protocols, VoNR, VoLTE, Vi-LTE and VoWiFi. Traffic preemption and Quality of Service are managed across QCI classes 1–9, 65–67, 69–76, 79–80 and 82–85.

Carrier flexibility comes from dual-SIM connectivity, using one physical nano-SIM slot and an embedded eSIM. Facility networking uses Wi-Fi 6 (802.11 a/b/g/n/ac/ax/e/k/r/v) with fast roaming protocols to keep database sessions active between access points. Peripherals pair over Bluetooth 5.2 and Near Field Communication (NFC). Location tracking uses multi-constellation satellite positioning that supports GPS, A-GPS, GLONASS, Galileo and BeiDou. Physical connections include a USB 3.1 Type-C port, a secure 16-pin lateral interface for heavy-duty audio accessories, and rear base charging contacts.
