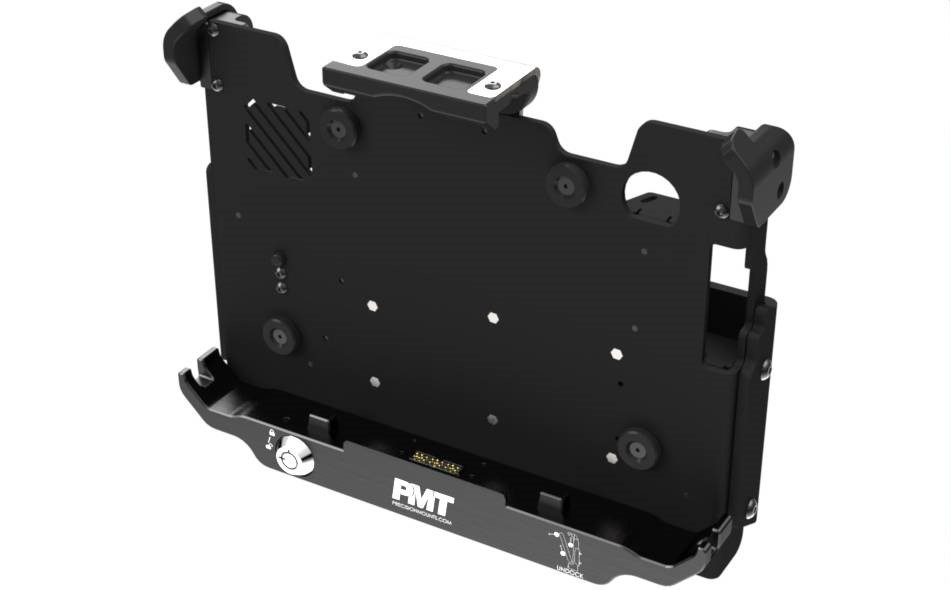

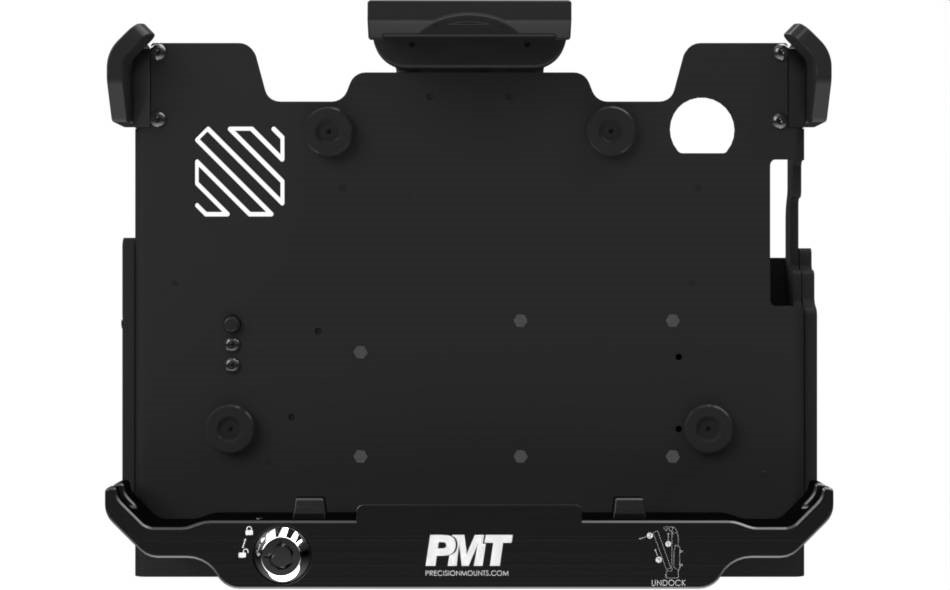

Precision Mounting Technologies Vehicle Dock - Dell Lattitude 7030 Rugged Extreme 10"Tablet
Lattitude Rugged Extreme 7030 10" Vehicle Dock Data Sheet
Product Details:
- Slim, compact, low profile and small footprint design
- Compatible with or without kickstand, extended I/O module
- Easy access to front-mounted key lock, USB 2.0 and audio port
- Convenient location of I/O ports
- Easy access to I/O ports and built-in tablet stylus
- Integrated strain relief for securing cables
- MIL-STD 810G; SAE J1455 tested and certified
Specifications:
- Compatible computer: Dell Lattitude rugged 10" tablets (7030)
- Dimensions: 27.64 cm x 22.02 cm x 7.32cm
- Certifications: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
- Connectivity includes:
- Fully-powered USB 3.0 (2)
- USB-C: (1)
- Serial: RS232 (2)
- Ethernet: RJ45 Ethernet (1),
- Input voltage: 19.5V DC,
- Product weight: 1.97kgs
