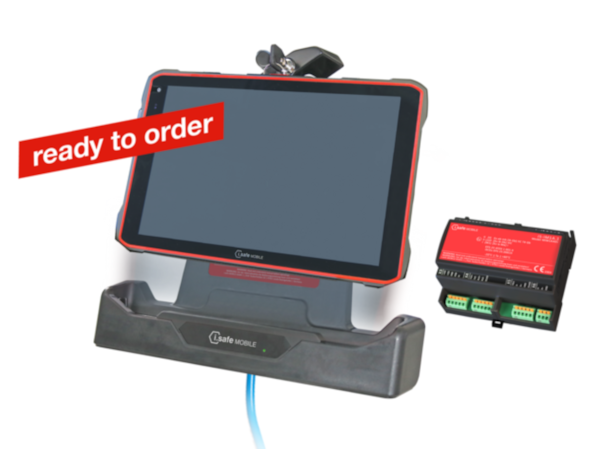

Designed for absolute user convenience and safety in harsh local climates, this intrinsically safe mobile operator panel system seamlessly integrates the 10.1-inch IS940.1 Android rugged tablet into volatile mobile assets and processing environments. Its robust, certified architecture provides essential Ex-rated wired port replication and secure mechanical mounting while ensuring zero risk of static or spark ignition during remote operations. This turnkey solution maximises field-worker efficiency, streamlines localized PLC diagnostics, and protects high-value data across demanding Zone 1/21 hazardous environments throughout Australia.
Download the Data Sheet for full specifications here
Product Details
- Certified to ATEX and IECEx standards for safe, non-sparking use in explosive gas and combustible dust zones.
- Integrates the IS-CS1A.1 ecosystem to connect the tablet directly to wired networks and PLC machinery.
- Heavy-duty mechanical locking cradle with standard VESA 100 mounting to withstand rough remote Australia track travel.
- Includes a DIN-rail module with push-in spring connections for secure power and Ethernet routing.
- Equipped with an extra-loud loudspeaker and a dedicated physical red SOS button for isolated regional sites in Australia.
- High-durability 10.1-inch display optimised for responsive wet-finger and heavy work glove input.
Specifications
- Physical Attributes and Product Weight:
- Rugged Tablet Dimensions (IS940.1): 258.2 mm x 191.6 mm x 23.8 mm
- Rugged Tablet Weight (IS940.1): Approximately 1.06 kg
- Interface Module Weight: Approximately 0.46 kg
- Mounting Configuration: Universal VESA 100 standard footprint
- Connectivity:
- Operating System: Android™ 14
- Processor & Memory: Qualcomm® QCM6490 Octa-Core | 8GB RAM | 128GB Storage
- Wired Network (via Module): 1 x Ethernet Ex e port
- Wired USB Interfaces: 1 x USB 2.0 Ex e port | 1 x USB 1.1 Ex i port
- Wireless Communication: 5G/4G LTE Broadband (Optimized for Australian Carrier Bands) | Wi-Fi 6 | Bluetooth 5.2 | NFC | Dedicated GPS
- Cradle Input Volatge: 24 VDC (10% threshold, 1.2A)
- Certifications and Durability Testing:
- Vibration Testing: MIL-STD 810H
i MIL-STD 810H: A U.S. Military Standard that tests equipment against environmental stresses like vibration and shock to prove its durability.
- Ingress Protection: IP68
i IP68 Rating: IP68 is an Ingress Protection (IP) rating classifying a device's resistance to dust and water. It is one of the highest standard ratings available for consumer and industrial electronics.
- Hazardous Area Ratings: ATEX & IECEx Zone 1/21 (II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T135°C Db)
30,000 Cycle Test: The device's latching mechanism has been tested for 30,000 open-and-close cycles to verify its long-term mechanical reliability. Hot/Cold Testing: The device is tested to ensure full functionality in extreme operating temperatures and to withstand even more extreme storage temperatures without damage.
- FCC: U.S. certification for electronic interference.
CE: EU standard for health, safety, and environmental protection.
UKCA: The UK's equivalent of the CE mark.
RoHS: Restricts the use of specific hazardous materials.
EN 50498: European EMC standard for in-vehicle electronics.
CISPR 32 – Class B: International standard for radio disturbance.
ICES-0003: Canadian standard for radio frequency emissions.
RCM: Australian mark for regulatory and safety compliance. Operational Temperature Range: -20 °C to +55 °C (Suited for extreme Australian field temperatures)
Product Gallery
× ![]()
Support & Availability
For all products supplied by Roaming Technologies our extended warranty support comes at no charge for the lifetime of the device. This means we'll be your single point of contact to assist in any warranty or repair issues, ensuring your device gets back into the field as quickly as possible.
Shipping costs and delivery lead times will vary depending on the product options and order quantities required. With the use of Australia-wide distribution centres, drop shipments direct from vendors and overnight shipping, we offer industry leading product availability.
If you have any questions about the products, feel free to call us at 1300 131 933 and speak with one of our specialists, or contact us online for assistance.
