Overview

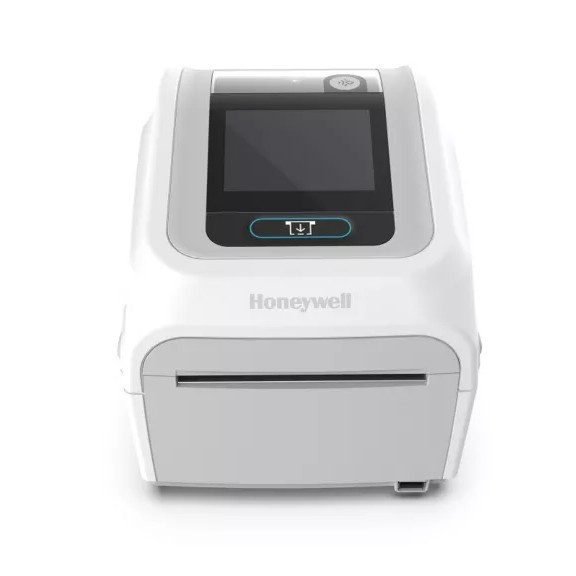

The Honeywell PC45d Healthcare Desktop Printer delivers powerful performance, reliable connectivity, and easy integration in a compact, disinfectant-ready design, specifically tailored for healthcare work environments. Designed from the successful E-class and PC43 series, it offers enterprise-level ruggedness and supports various needs through new accessories. With Honeywell Printer Edge™, businesses gain a centralized management system for real-time visibility, enhanced security, and optimized printer operations, reducing downtime and streamlining workflows.
Get all the details of the product on the data sheet below.
Download the Data Sheet for full specifications
Performance and Processing Power
The PC45d printer delivers versatile performance with print speeds up to 8 inches per second (ips) at 203 dpi and 6 ips at 300 dpi. It supports maximum print widths of 108 mm (4.25 in) at 203 dpi and 106 mm (4.12 in) at 300 dpi. The printer features 256 Mbyte RAM and 512 Mbytes Flash memory, supporting a wide range of printer command languages including Fingerprint, IPL, and ZSim2 (ZPL-II).
Display and Input Design
The PC45D Healthcare features an intuitive 88.9 mm (3.5 in) 320 x 240 Color LCD for easy navigation and status monitoring. A dedicated Print/Feed button and a ready-to-work LED provide straightforward operational control. This user-friendly interface simplifies daily tasks and contributes to efficient workflow management in fast-paced environments.
Connectivity and Expansion
The PC45D Healthcare offers comprehensive connectivity, including standard Ethernet 10/100 Mbps, USB 2.0 Host, and USB 2.0 Device ports for reliable wired connections. For wireless flexibility, it supports Wi-Fi 5 (802.11 a/b/g/n/ac) with WPA/WPA2/WPA3 security and fast roaming, alongside Bluetooth 5.1 LE. Optional interfaces include RS-232, RFID UHF for enhanced inventory tracking, and optional WWAN/cellular modem, ensuring adaptable network integration.
Power Supply
The Honeywell PC45D Healthcare printer operates with a universal power supply, accepting input from 100-240VAC at 50-60 Hz and 1.5 A. It provides a stable 24V DC output at 3.15 A, ensuring consistent and reliable power delivery for continuous printing operations in various business environments.
Security and Data Protection
This device is equipped with comprehensive security features for network protection and centralized management. Honeywell Printer Edge™ provides a smart, connected platform with enhanced security and a single software toolkit for your printer network. Honeywell Operational Intelligence offers remote management capabilities for real-time diagnostics, while secure printing and configuration channels further protect data transmission and device settings.
Usability and Durabilty
This desktop printer is ideal for various healthcare applications, supporting media types such as wristbands, tags, and receipt paper. It features media sensing capabilities for gaps, notches, black marks, and low media levels for predictive maintenance. It features media sensing capabilities for gaps, notches, black marks, and low media levels. The PC45D model measures 168 mm L x 181.3 mm W x 215.6 mm H and weighs 1.8 kg.
The PC45D series is designed with enterprise-level ruggedness to withstand demanding everyday work environments. It is built to operate reliably across an environmental temperature range of 0°C to 45°C and can be stored from -20°C to 60°C , with humidity tolerance from 10% to 90% non-condensing. Its robust construction ensures reliable performance in various operational conditions.
Support & Availability
For all products supplied by Roaming Technologies our extended warranty support comes at no charge for the lifetime of the device. This means we'll be your single point of contact to assist in any warranty or repair issues, ensuring your device gets back into the field as quickly as possible.
Shipping costs and delivery lead times will vary depending on the product options and order quantities required. With the use of Australia-wide distribution centres, drop shipments direct from vendors and overnight shipping, we offer industry leading product availability.
If you have any questions about the Honeywell PC45D, feel free to call us at 1300 131 933 and speak with one of our specialists, or contact us online for assistance.
