Havis Vehicle Dock - Panasonic Toughbook CF-54 Notebook

  • Havis Vehicle Dock - Panasonic Toughbook CF-54 Notebook

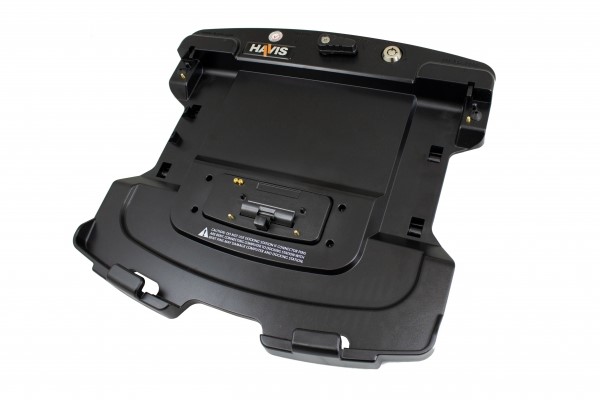

    Havis Vehicle Dock - Panasonic Toughbook CF-54 Notebook DS-PAN-431_54

    Havis Vehicle Dock - Panasonic Toughbook CF-54

    Havis CF-54 Vehicle Dock Owner's Manual


    Product Details:

    • Docking station for Panasonic's TOUGHBOOK 54 and forwards compatible with TOUGHBOOK 55 rugged laptop
    • Panasonic Toughbook Certified.
    • Accommodates all TOUGHBOOK 54, providing access to bottom smartcard reader while computer is secured in docking station
    • Increased connector protection via retractable cover that protects pins when device is absent
    • Backwards compatible with Panasonic Toughbook CF-54 for existing fleets
    • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management
    • Integral mounting provided for the addition of Havis rugged Communications hub, which allows user to expand connectivity
    • Floating, guided docking connector maintains safe and secure connectivity
    • Low profile design maximizes available space inside of vehicle
    • Rounded corners and edges are ideal for your safety in accidents and airbag deployment, in addition to daily use and operation of docking station
    • Supplied mounting bracket designed to fit all Havis mounting equipment as well as most competitors' mounting equipment
    • Lock and key supplied for peace of mind theft deterrence


    • Compatible computer: Panasonic TOUGHBOOK CF-54 semi rugged notebook
    • Dimensions: 38.4 cm x 34.8 cm x 7.6 cm
    • Certifications: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
    • Connectivity includes:
    1. USB: fully-powered USB Type 3.0 (2)
    2. Serial RS 232 (1)
    3. VGA (1)
    4. HDMI (1)
    5. Ethernet: RJ45 Ethernet (1),
    6. Input voltage: 15.6 vDC,
    7. Optional High Gain Dual RF Pass Through
    • Product weight: 2.40kgs
