Panasonic Toughpad CF-D1 13.3-inch Fully Rugged Windows Tablet

  • Panasonic Toughpad CF-D1 13.3-inch Fully Rugged Windows Tablet

    Panasonic Toughpad CF-D1 13.3-inch Fully Rugged Windows Tablet CF-D1NV023TA

    To ensure this new Toughbook Diagnostic Tablet has the power to fulfil its industrial purpose, it uses the latest second-generation Intel® Core™ Platform and runs the Windows® 7 Professional operating system. For convenient use by engineers, the device can be used in a docking cradle with a flexible angle to allow easy viewing in various usage scenarios. The device can also be held with the addition of an optional hand strap or attached to extendable legs, which allow the device to stand alone, alongside the engineer.







    Operating System:

    Windows 8.1 Pro 64-Bit


    Intel® Core™ i5-3340M processor

    (2.7GHz, 3MB Intel® Smart Cache, Intel® 6 series Express chipset QM77)


    500GB (SATA) HDD

    Expandable with SD/SDXC Memory Card


    4GB DDR3 SDRAM (max. 8GB)


    13.3" Active Matrix (TFT) colour LCD 1366 x 768 pixels (HD) with Touchscreen. Up to 400cd/m² transmissive brightness.

    Optional outdoor display: 1.000cd/m²

    Intel® HD 4000 graphic, UMA (Windows® 8.1 64bit max. 1696MB, 32bit max 1429MB)

    Anti-reflective and anti-glare screen treatments

    Ambient light, accelerometer and digital compass sensors


    Intel® Centrino® Advanced-N 6205 AGN IEEE 802.11 a/b/g/n compliant

    GPS (Optional)

    4G Mobile Broadband (Gobi 5000, up to 21Mbps DL) (Optional),

    Bluetooth® 4 + EDR Class 1


    Optional - GPS Receiver, 2-4 meter accuracy,external antenna connector

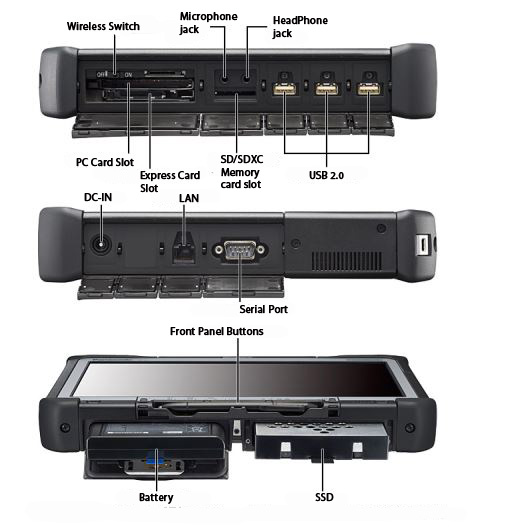

    1 x Docking connector

    3 x USB 2.0 (4th USB 2.0 Optional Configuration)

    1 x Rugged USB 2.0 (Optional Configuration)

    1 x VGA, Optional Serial Port *MOQ: 20

    1 x Micro SD/SDXC Memory Card

    1 x RJ-45, 2nd LAN optional (Optional Configuration)

    1 x Fingerprint reader (Optional Configuration)

    1 x PC Card Slot-Type I or II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA

    1 x Express Card Slot-ExpressCard /34 or /54

    1 x Headphones/Microphone 3.5mm jack


    Integrated Features:

    1.3MP front Webcam

    5MP back camera with LED Flash

    Power Supply:

    Lithium-Ion (10.8V, 6.2Ah)

    Battery operation: Approx. 9 hours (MobileMark™ 2007, 60cd/m² LCD brightness)

    Input: 100-240V AC, 50Hz/60Hz, Output: 15.6V DC, 7.05A


    MIL-STD-810G and IP65 certified sealed all-weather design

    Magnesium alloy chassis encased with ABS and elastomer

    Port covers

    Temperature (operating) -10 °C to 50 °C {14 °F to 122 °F}

    Gravity drop resistance test: 120cm (unit power off)

    Dimensions, Weight & Color:

    349mm x 46 x 244mm {13.7" x 1.8" x 9.6"}

    Approx. 2.25kg {Approx. 4.96lb}


    3-year limited warranty, parts and labor

    $3,061.00 (inc GST)
    RRP: $3,299.00

    Options and Accessories

    Power Options
    Spare AC Adapter
    Li-ion battery pack
    Other Accessories
    Black Stylus Pen for CF-D1
    Protective Film to suit CF-D1
    Docking Solutions
    Docking Cradle with DVD Drive
